Mu-metal Hymu80 is well known for its high performance in Magnetic Shield. It is widely used for shielding to protect electrical components from stray magnetic fields.
HYMU 80 alloy is an unoriented, NiFeMo alloy with 80% Nickel content. It could be heat treated to show very high initial permeabilities, maximum permeabilities, minimum hysteresis loss and AC core losses at low magnetic flux densities.
Chemical composition(ASTM A753 Alloy 4)
- C: 0.05 max
- Mn: 0.80 max
- Si: 0.50 max
- P: 0.02 max
- S: 0.01 max
- Cr: 0.30 max
- Ni: 79.0-82.0
- Mo: 3.5-6.0
- Co: 0.5 max
- Cu: 0.3 max
- Fe: balance
Spec
- DIN 17745
- DIN 17405
- DIN EN 60404-8-6
- ASTM A 753
- MIL-N-14411C
Main Character
- Very high initial permeabilities
- Maximum permeabilities
- Minimum hysteresis loss
- Minimum AC core losses
Application
- Highly sensitive and small power transformers f in weak magnetic fields
- Low power magnetic amplifier
- Relay
- Choke
- Magnetic heads for magnetic recording devices
- Magnetic shielding
- Wound iron core
- Cutting iron core
- Laminated core.
Form of supply
- Forging
- Round bar
- Cold drawn wire
- Hot rolled plate/strip
- Cold rolled strip
- Seamless pipe/tubing
- Welding pipe/tubing
- Capillary
About XUNSHI
Suzhou Xunshi New Material Co. Ltd- referred as XUNSHI hereafter, is a professional manufacturer of high-performance alloy products. XUNSHI is engaged in supplying high quality and cost-effective Superalloy, Anti-Corrosion Alloy, Precision Alloy, Special Stainless Steel and Magnetostrictive Material to customers worldwide.
Why XUNSHI
· Highly experienced in alloy industry
· Top experts of industry in China
· Advanced technology and process from top famous institutes in China
· Advanced devices through whole production and inspection process
· Strict quality control system
· Company motto: best service, most value
· Smart sales policy
Service Items of XUNSHI
· Non-standard product research and pre-production
· Fabrication of products
· Cutting, splitting for sheets and plates in stock
· Heat treatment (Solution treatment, aging harden treatment, anneal, spring temper, quench etc.)
· Surface finish (peeling, gridding, polishing)
· Logistics service
· Customized packing service (also for exporting)
· Import and export (XUNSHI is certificated)
· Document translation
· Hard-to-find material sourcing
Customers of XUNSHI
Customers of XUNSHI are all over China (Taiwan and Hong Kong included). And we are exporting to USA, Canada, Italy, UK, Poland, Greece, Russia, Turkey, Iran, Israel, South Africa, South Korea, North Korea, India, Argentina, and Brazil and so on. Customers from 30+ countries trust us.
Where is XUNSHI
A- XUNSHI is in Huaqiao, Kunshan, 215332 China, which is very closed to Shanghai.
B- Xunshi is around 80KM from Shanghai Pudong International Airport (PVG).
C- 20KM from Shanghai Hongqiao Airport
D- 20KM from Shanghai Hongqiao Railway Station
E- You can contact XUNSHI sales for a pickup service.
Product Tags:
|
|

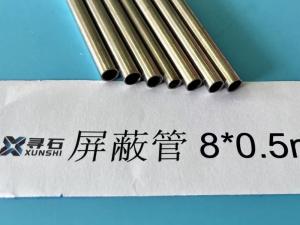

ASTM A753 Magnetic Shield Alloy MU-METAL Hymu 80 Tubing Diamter 8mm Thickness 0.5mm Images
|
